▶Universal Parallel Jaw Precision Rotary Adjustable Vise
▶Universal Parallel Jaw Precision Rotary Adjustable Vise
Regular price
$399.00 USD
Regular price
Sale price
$399.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Flexible operation, precise scale, fast operation. You can get ±7 accuracy by naked eye calibration. 90-degree horizontal tilt, suitable for angular hole processing on flat or inclined surfaces, easily meet your needs! Precision scale, universal precision vise, high-precision clamping stability, selected materials, 360° horizontal rotation, accurate to detail measurement, hardness 58-62°! Universal adjustment to meet different angle requirements!

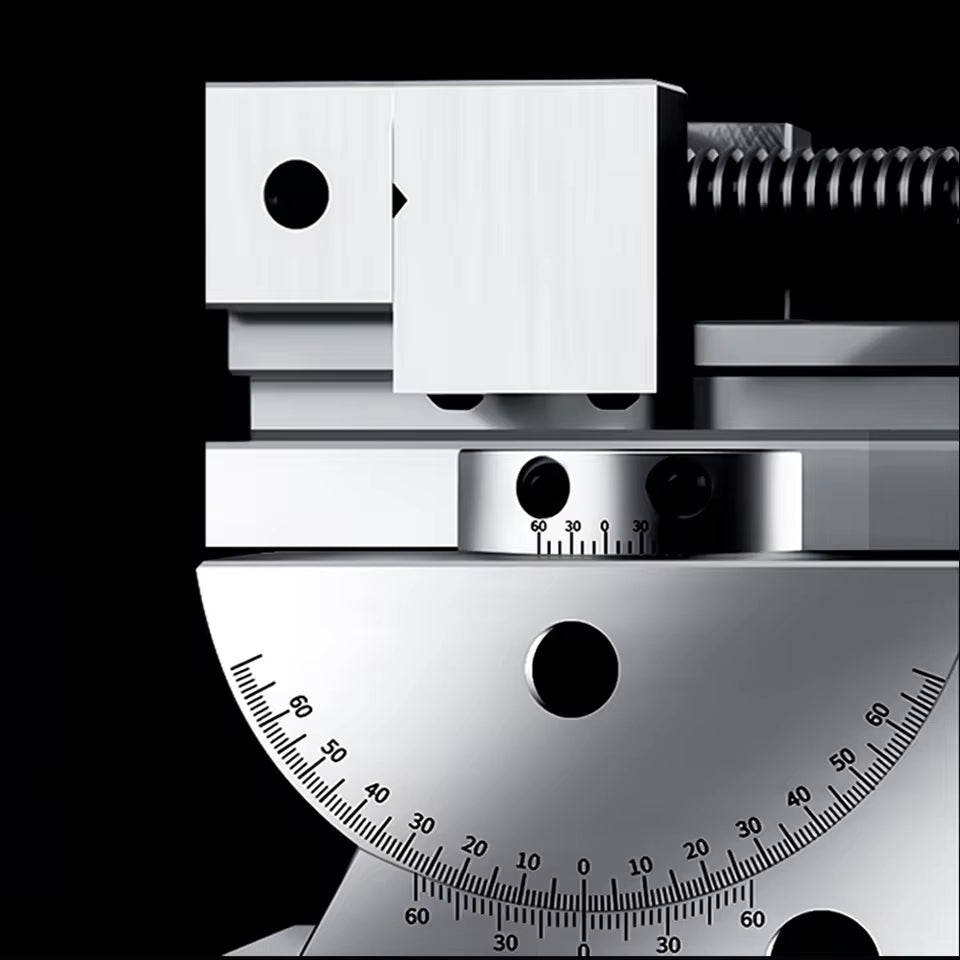

【Standard scale】【Clear and accurate】Easy to adjust the angle, easy to use and operate. The material used is tool steel, which is durable and has a longer service life!

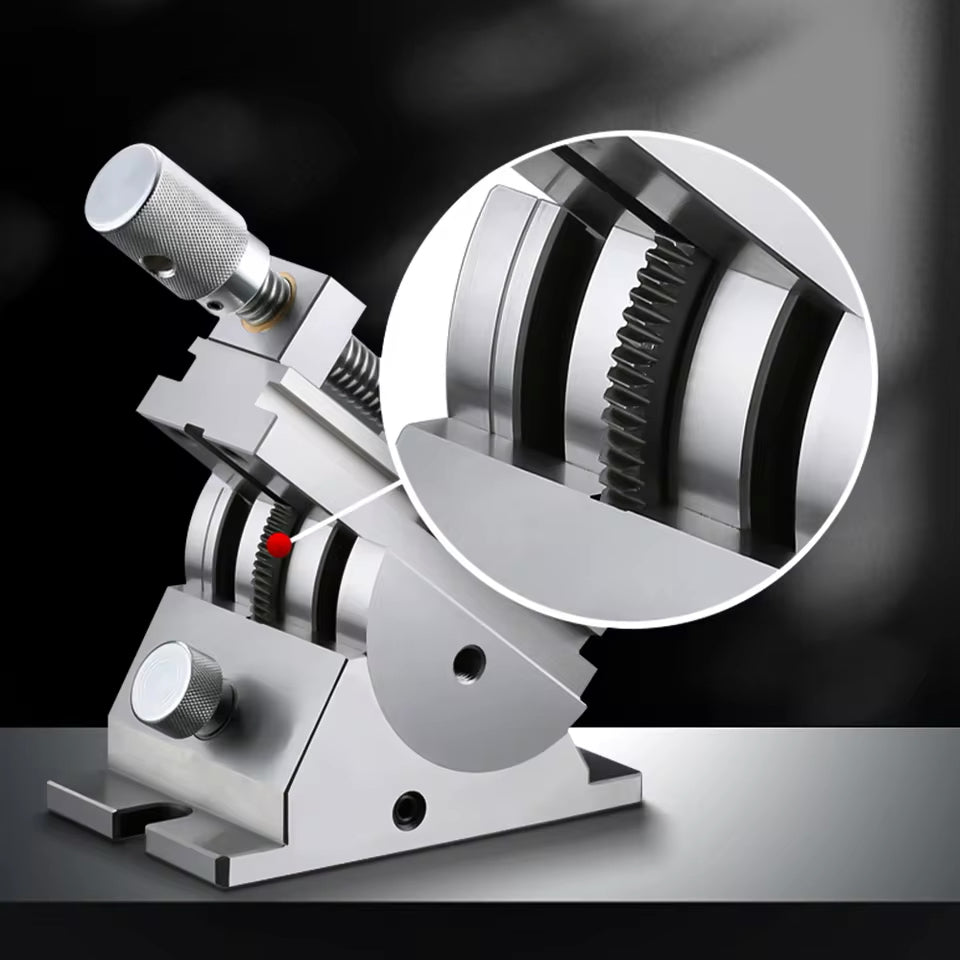

Worm gears, precision matching and adjustment, assembly quality improvement, maintain a small assembly gap! Every detail is visible! For surface grinders, milling machines, EDM, and wire cutting machines, it can complete the processing of angle planes, grooves and plane oblique holes, and can be used for the measurement of various angle parts. Whether it is horizontal, vertical, or flat, it can maintain a very high progress during work.
Surface grinding, stable clamping, flexible operation, surface roughness reaches 0.8um!
We have always paid special attention to details, and have been continuously improving product quality and quality control, and constantly absorbing customer opinions. If you have any questions or comments about our products, please feel free to contact us! In addition, we also support non-standard customization!

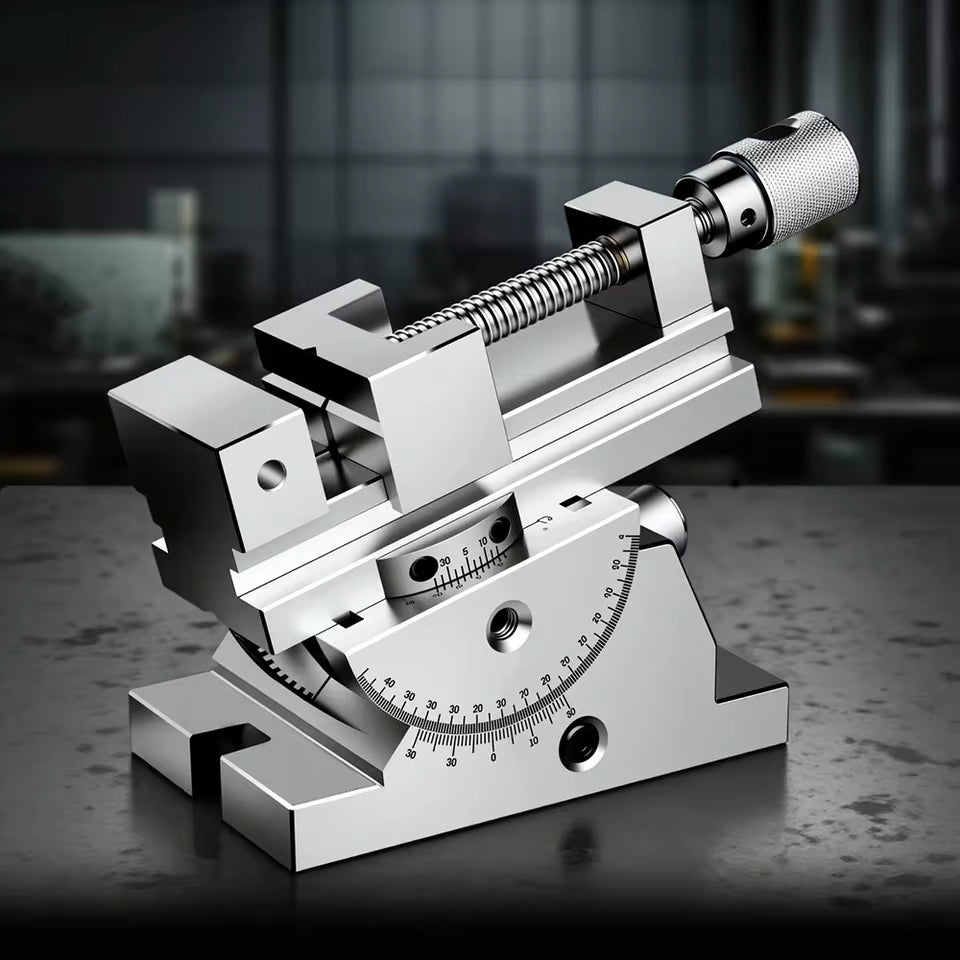

[Product Operation] The flat jaws of the universal precision vise can be rotated within 360° in the horizontal direction and 45° in the vertical direction with the help of a rotating seat. It can be used for precision grinders, milling machines, etc. to process planes, bevels, oblique holes, etc. at a certain angle.

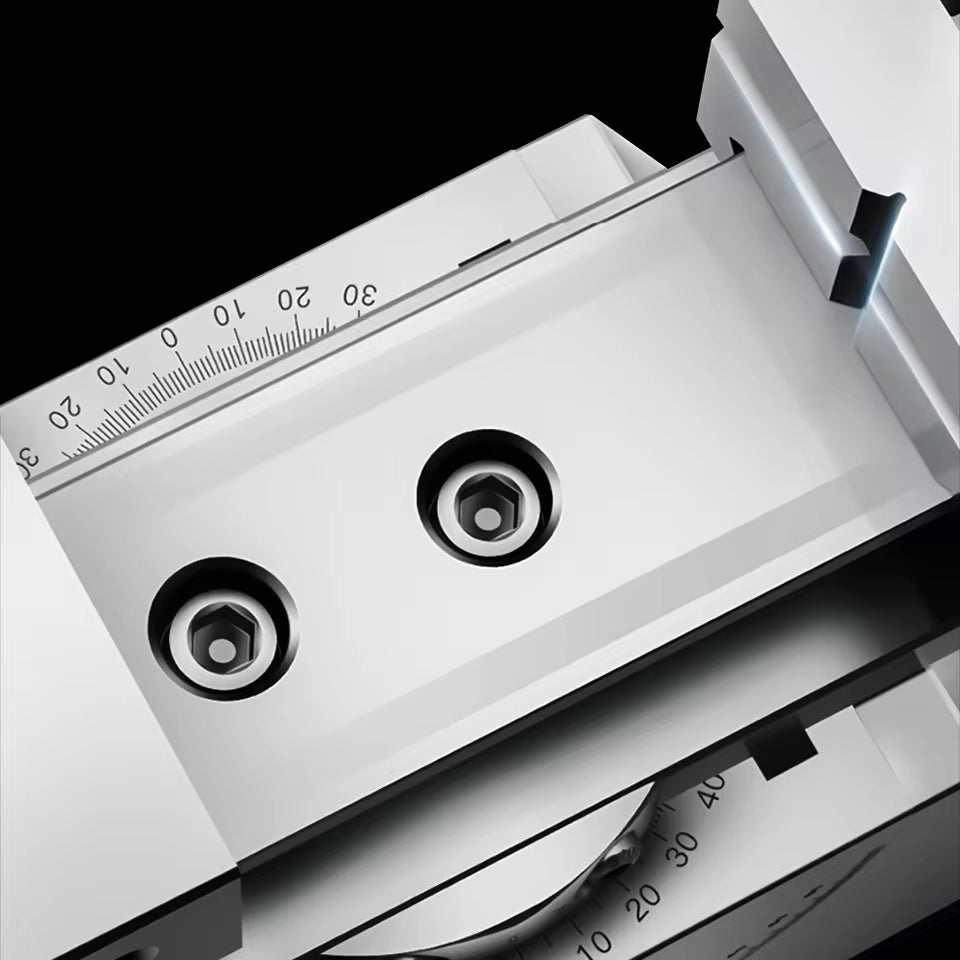

[Parallelism Adjustment Operation] When the parallel surface of the workpiece does not meet the requirements, just loosen the screws "4" on both sides, turn the handle "3", and align the scale to zero.
When the parallel surface requirements of the workpiece are strict, a micrometer can be used to measure the surface of the pliers body so that the parallelism meets the predetermined requirements.
[Angle Adjustment] Angle adjustment within the horizontal range: loosen the screws "2" on both sides, turn the flat jaws to the required angle, and then tighten the screws "2".
Angle adjustment within the vertical plane: loosen the screws "4" on both sides, turn the handle "3" to adjust to the required angle, and then tighten the screws on both sides

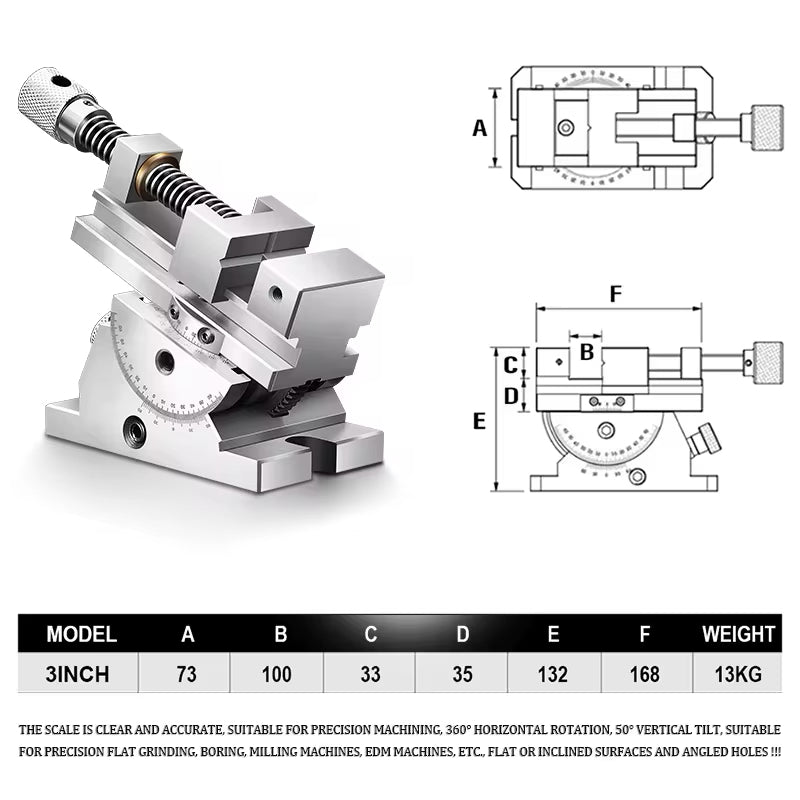

Product name: Universal precision vise
Verticality: 0.005MM
Parallelism: 0.005MM/100MM
Product accuracy: ±0.005MM
Material: 20 CrMnTi
Jaw hardness Working surface hardness: HRC55-64
Product model: 2inch - 3inch
